Capsules
Capsules materials
Gelatin – Hard Gelatin Capsules (HGC) are the most widely used capsule in the world. The gelatin is manufactured from collagen of animal origin.
HPMC – HPMC capsules are made from a renewable, plant-based resource. They are suitable for vegetarians.
Pullulan – Pullulan capsules are made from tapioca starch and are suitable for vegans.
* Both HPMC and Pullulan capsules are certified Halal, Kosher and non-GMO.
CAPSULES AVAILABLE
STANDARD (HGC)

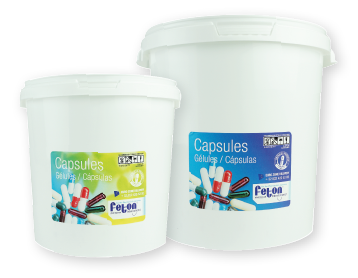

Available by 2500, 5000, bucket or whole box.
| 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 | |
| Clear/Transparent |  | | | | | | | |
| White | | | | | | | | |
| Ivory | | | | | | | | |
| Blue/White | | | | | | | ||
| Red/White | | | | | | | ||
| Green/White | | | | | | |||
| Green transparent | | | | | | |||
| Pink transparent | | | | |

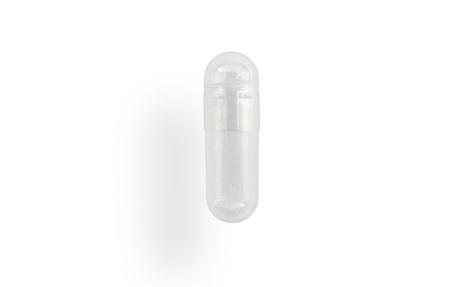

Clear

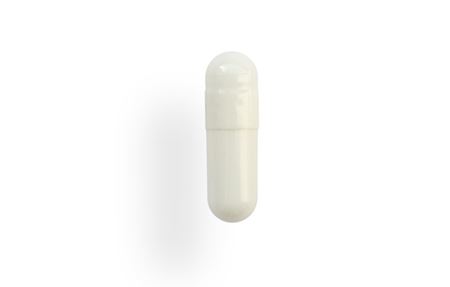

White

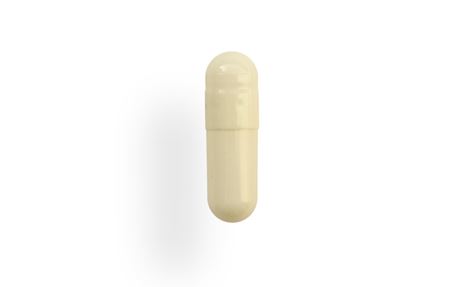

Ivory
Blue/White

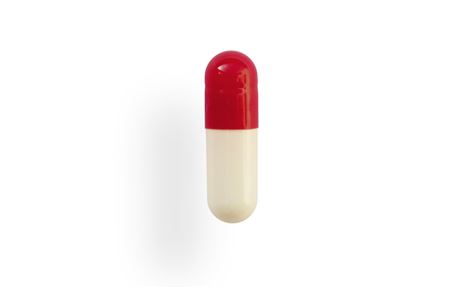

Red/White
Green/White

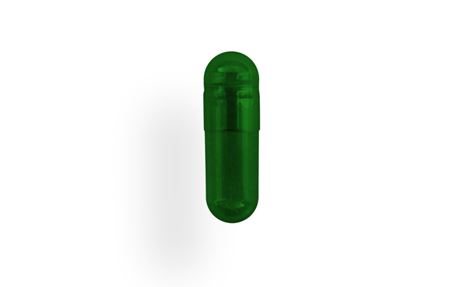

Green transparent

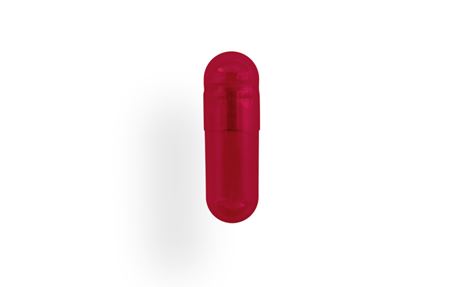

Pink transparent
HPMC
Available by 2500, 5000, bucket or whole box.| 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 | |
| Clear/Transparent | | | | | |
Pullulan
On order only, according to manufacturer's availability.
Available by whole box only.| 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 | |
| Clear/Transparent | | | |
DBCaps
On order only, according to manufacturer's availability.
Available by whole box only.| AAA | AAel | AA | A | B | |
| Swedish Orange | | | | | |

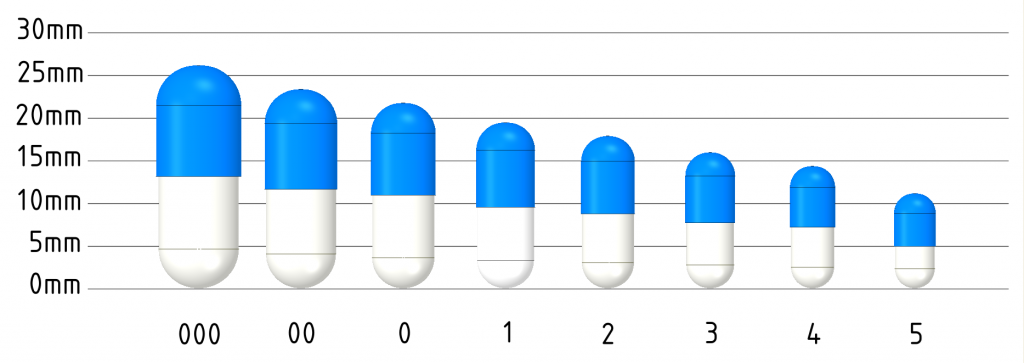

Capsules sizes
Capsule dimensions [mm]
| 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 | |
| Body length | 22,20 | 20,22 | 18,44 | 16,61 | 15,27 | 13,59 | 12,19 | 9,30 |
| Body diameter | 9,55 | 8,18 | 7,34 | 6,63 | 6,07 | 5,57 | 5,05 | 4,68 |
| Cap length | 12,95 | 11,74 | 10,72 | 9,78 | 8,94 | 8,08 | 7,21 | 6,20 |
| Cap diameter | 9,91 | 8,53 | 7,64 | 6,91 | 6,35 | 5,82 | 5,32 | 4,91 |
Capsule volume [ml]
| 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 | |
| Volume | 1,37 | 0,91 | 0,68 | 0,50 | 0,37 | 0,30 | 0,21 | 0,13 |
Capsule dimensions [mm]
| Powder Density | 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 |
| 0,6 g/ml | 822 | 546 | 408 | 300 | 222 | 180 | 126 | 78 |
| 0,8 g/ml | 1096 | 728 | 544 | 400 | 296 | 240 | 168 | 104 |
| 1,0 g/ml | 1370 | 910 | 680 | 500 | 370 | 300 | 210 | 130 |
| 1,2 g/ml | 1644 | 1092 | 816 | 600 | 444 | 360 | 252 | 156 |
