The main element you will need is a capsule filling machine. There are different sizes and types of machines.
Choose the Capsule Filling machine that fits your specific needs.

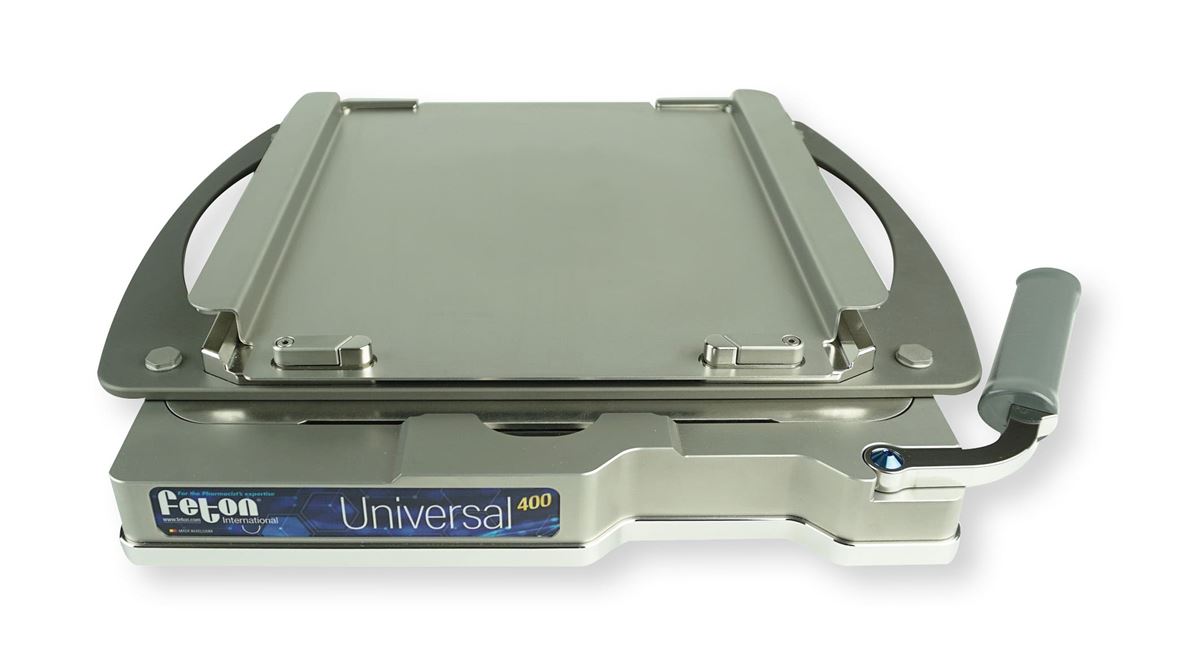

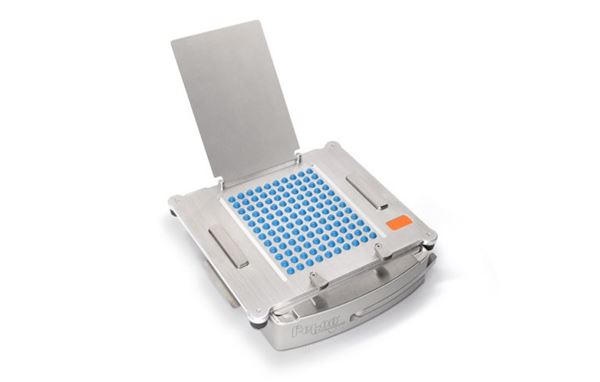

Universal Filler lINE
A unique filler for all your capsules sizes.
- Fill 120capsules (Universal120) or 400capsules (Universal400) at a time

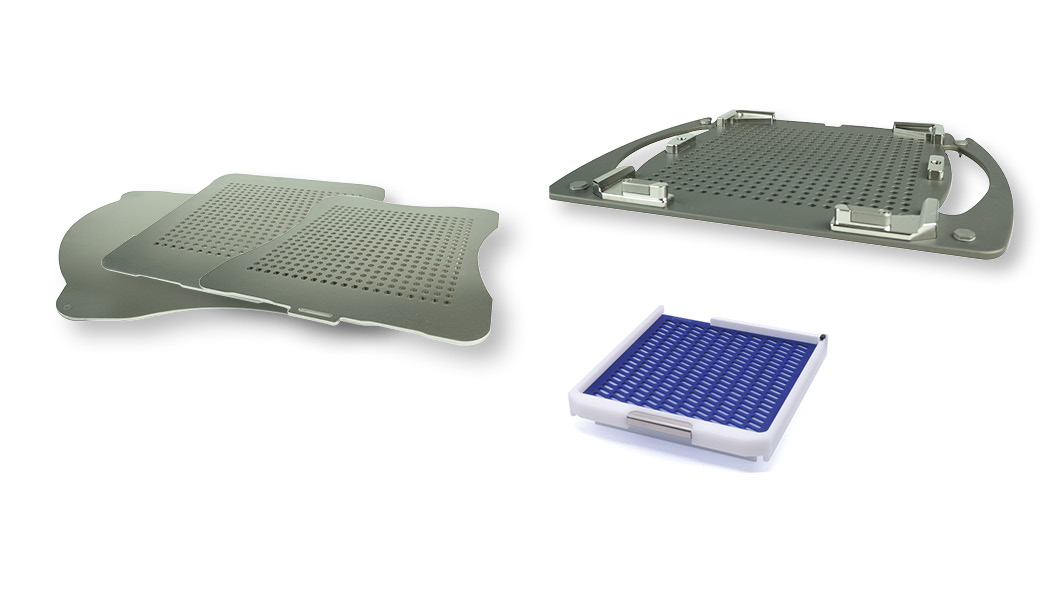

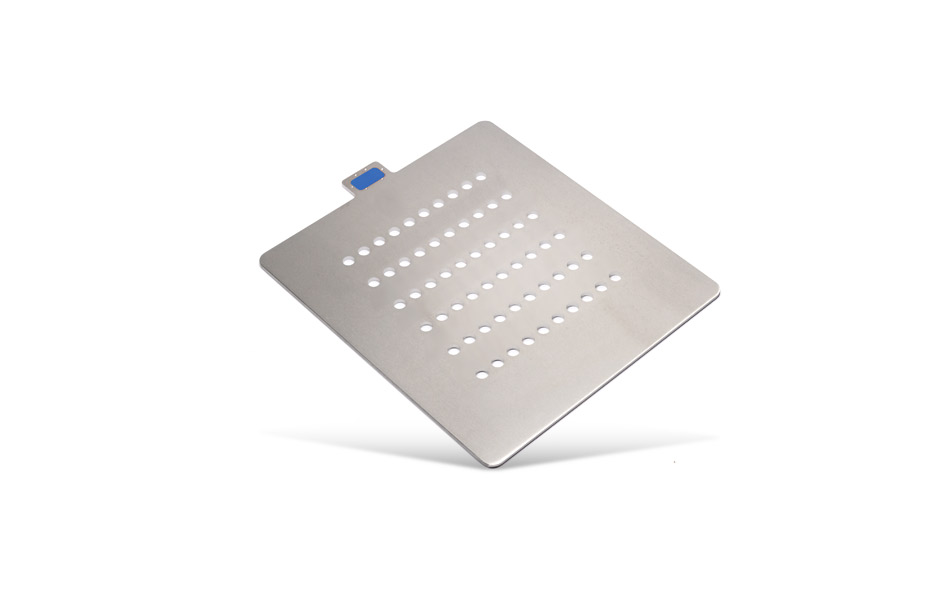

- One single frame and interchangeable plates
- Capsules sizes 000, 00, 0, 1, 2, 3 and 4
- Fastlock Lever locking system
- Plates material: Stainless Steel / Anodised Aluminium
- No electrostatic issues
Full Metal Filler LINE
For higher-output productions.
- Fill 100, 120, 200, 300 or 400 capsules
- One machine per capsules size
- Capsules sizes 000, 00, 1, 2, 3, 4 and 5 and DB caps
- Fastlock Lever locking system
- Plates material: Stainless Steel / Anodised Aluminium
- No electrostatic issues

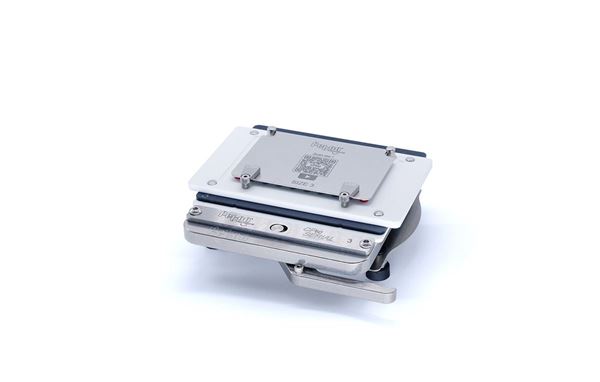

Compact Filler 60
For small scale productions.
- Fill 60 capsules at a time
- One machine per capsule size
- Capsule sizes 000, 00, 0, 1, 2, 3 and 4
- Lightweight (1,7 kg) and compact
- Fastlock Lever locking system
- Plates material: PMMA
- Plates treated to reduce electrostatic issues
Comparison table
| Universal | Full Metal | Compact | |
| A single machine for all capsules’ sizes |  | ||
| Number of capsules | 120 (or 60 holes) 400 (or 200 holes) | 100 120 (or 60 holes) 200 300 400 | 60 |
| Plates Material | Stainless Steel Anodized Aluminium | Stainless Steel Anodized Aluminium | PMMA |
| Antistatic | | | |
| Lever locking system | | | |
| Washing | Max 120°C | Max 120°C | Max 40°C |
| Weight | 120: 6,3kg 400: 19kg | 100/120: 4,0kg 300: 7,8kg | 1,7kg |
Comparison table
| 000 | 00 | 0 | 1 | 2 | 3 | 4 | 5 | |
| Universal 120 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Universal 400 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Full Metal 100 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Full Metal 120 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Full Metal 200 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Full Metal 300 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| Full Metal 400 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| Compact 60 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
