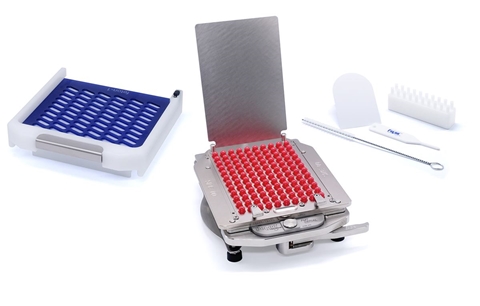

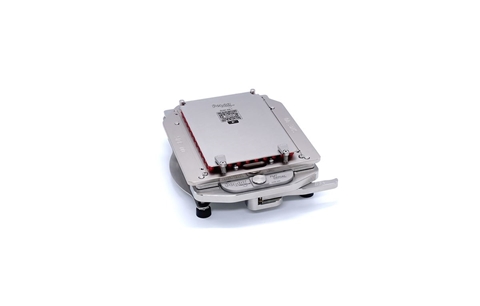

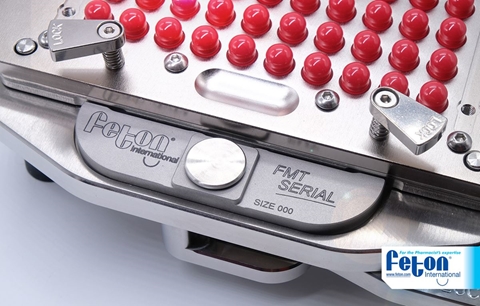

FULL KIT METAL 120

INFORMATIONS

• Capsule filler to fill 120 capsules in one go.
• The best choice for production up to 1200 capsules/hour.
• This capsule filler is used for small and medium series.

HOW TO USE

Demonstration of our capsule filler Full Metal 120.

1. Prepare your material. Install the plates in this order: Bottom Plate, Filling Plate, Top Plate.

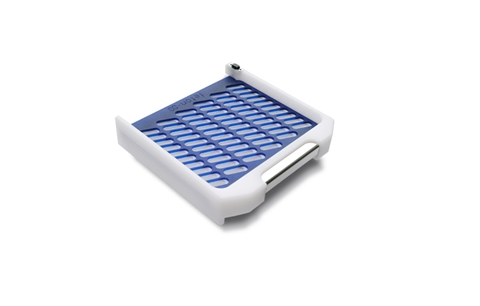

2. Load the Capsules. Please refer to the Loader datasheet for detailed instructions.

3. Pull the Lever to lock the Capsules’ bodies.

4. Pull the Top Plate upwards, starting from the back side for easier separation. Push with your thumbs on the Filling Plate in the back corners and pull with the fingers on the Top Plate.

5. Release the Lever. If needed, push on the Capsules’s bodies so that they are flush with the Filling Plate.

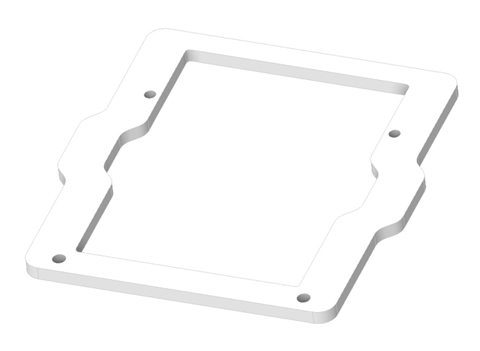

6. Fill the Capsules. Use of a Powder Stop.

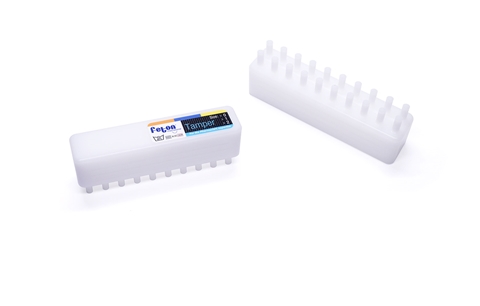

7. If needed, you can use a Tamper to push the powder into the Capsules to be able to fill a higher volume.
8. Place the Top Plate. Pull the Base Plate to push the Capsules’ bodies into the Capsules’ heads. The capsules are now “pre-closed”.

9. Take the Top Plate and turn it upside down on your table. If you have a Serial Closer, use it to close the Capsules in one smooth motion. If you do not have a Serial Closer, close the capsules by hand.

10. Your Capsules are now ready.

BENEFIT OF THIS CAPSULE FILLER FULL METAL 120:

• Each device does one single capsule size.

• Only metallic plates and frame.

• Fill Capsule sizes 4, 3, 2, 1, 0, 00 and 000.

• No adjustment necessary for this capsule filler.

• 100 and 120 capsules capacity for this Full Metal 120.

• Our device is very robust design.

• Our capsule filler is easy to clean.

DIMENSIONS AND WEIGHT:
Dimensions:
Length: 200mm
width: 232 mm
height: 67,77 mm

Weight:
3,6kg (size 000) to 4,0kg (size 5)

TIPS:
The capsule filler 100-120 alone is also available here and the loader 120 here.
Find our accessories.

HOW TO CLEAN:

It is important to clean the parts in contact with the capsules or the powder thoroughly between each use to.

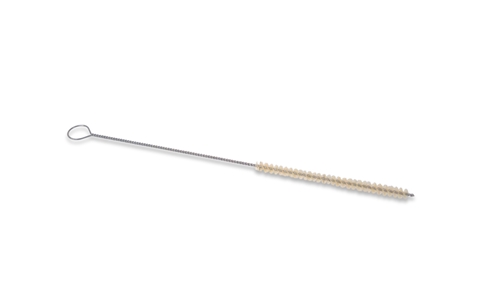

If you have difficulty cleaning the inside of the holes of the plates, use the small Feton-cleaning brush.

Washing can be done by hand (use warm water and soap), in a dishwasher or in an autoclave.

If done in a dishwasher : All metal parts : Use a maximum temperature of 110°C/230°F.

All plastic parts : Use a maximum temperature of 40°C/104°F.

Do not use alkaline or acid cleaning product that are not suitable for treated aluminium (nickeled or anodized), as they oxidize the surface treatment of the plates. In general, use cleaning products whose ph is neutral.

──────────────────────────────────────────

ORDER NOW :

contact@feton.com order via our contact form.

With a dynamic R&D department, we are ready to fulfill your special requests.
